| Production Speed： | Max. 30M/min |
| Laminate accuracy： | ±0.5mm |
| Label Max. Width： | 200mm |
| Label inner Diameter： | φ76mm |
| Label outer Diameter: | Max. φ500mm |
| Function： | RFID wet Inlay,paper,fabric Lamination |
| Machine Size： | 2000*1500*1900（mm） |
| Power： | 3Phase 380V 50-60Hz 5KW |
| Weight： | 3000Kg |
The above parameters are for reference only. The exact details should be confirmed with the actual product.
－The CL-613 electronic tag basic model composite equipment has basic functions of wet Inlay composite and face paper label (pre-cut label) composite. With simple settings, this equipment can achieve rapid production of RFID labels.；
－It features an independent composite group, unwinding base paper recycling and a circulating buffer system; this enables the equipment to have more functions and offers greater production flexibility; it can produce two rows (three layers) or single row four layers of labels.

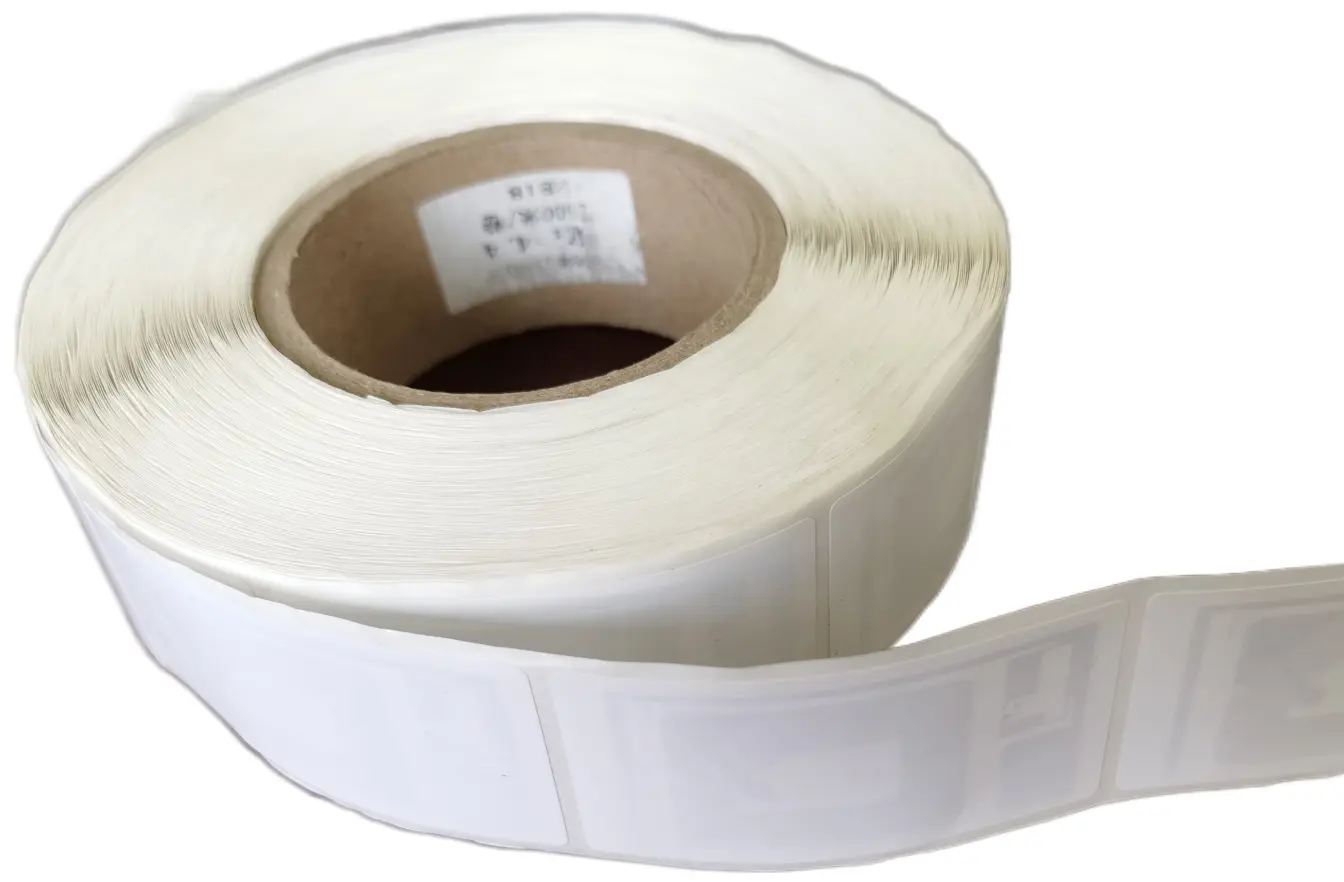

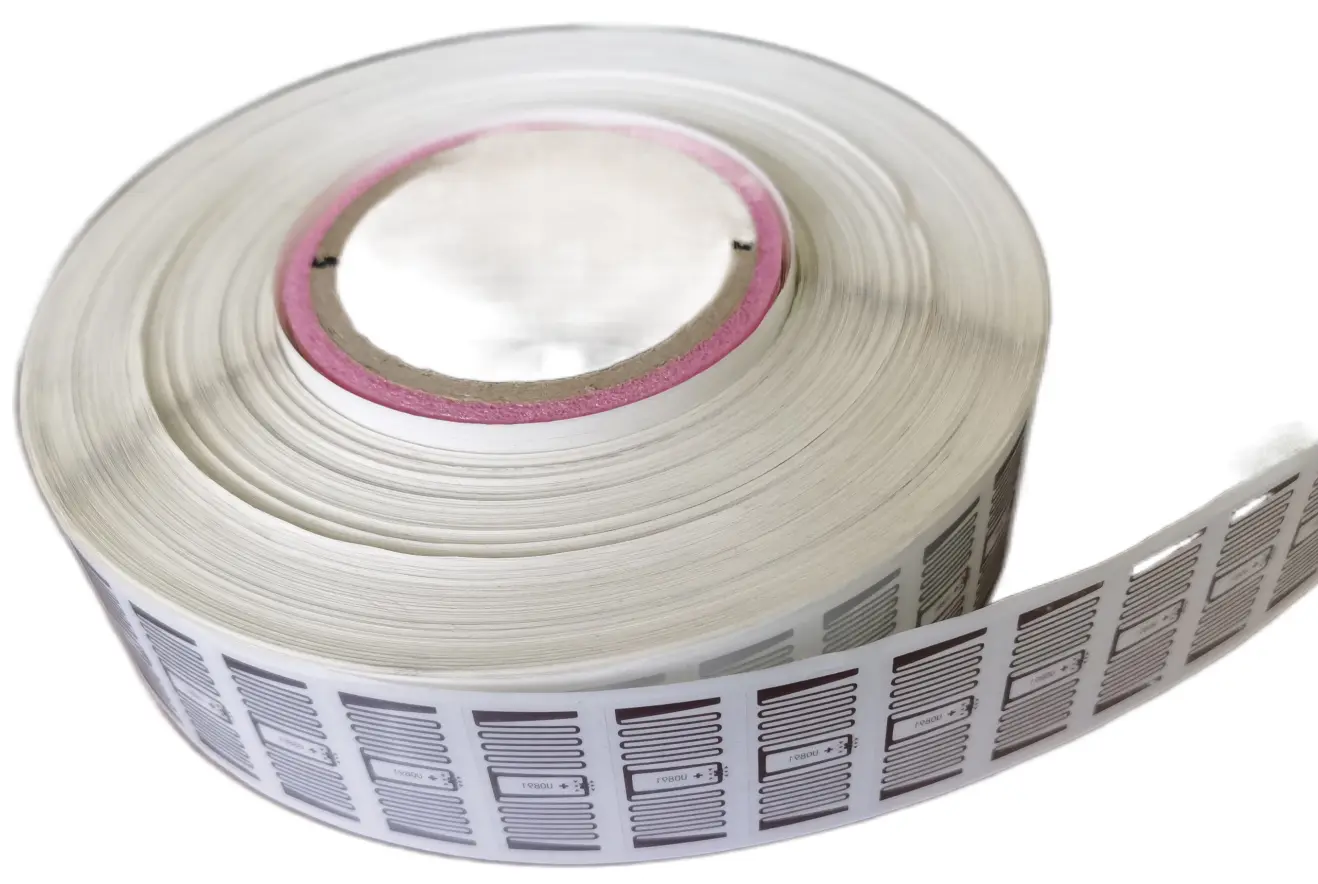

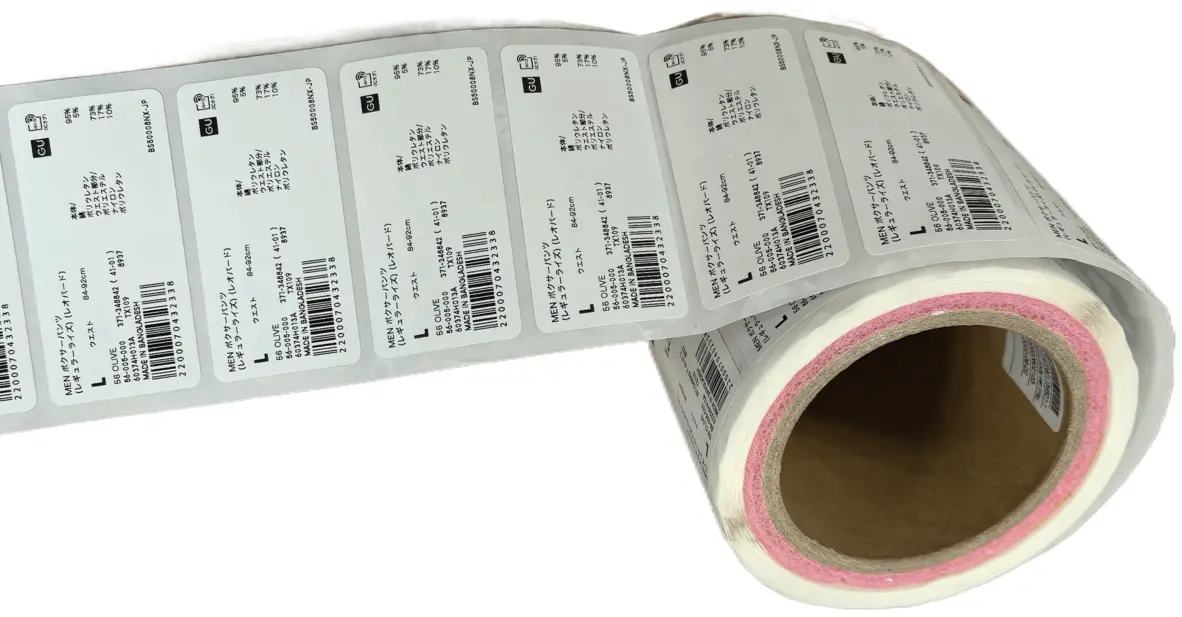

－The types of labels that can be produced include: RFID self-adhesive labels, tags, tickets, card paper, washed cloth labels, etc.
