| Production Speed： | Max. 60M/min |
| Laminate accuracy： | ±0.3mm |
| Label Max. Width： | 200mm |
| Label inner Diameter： | φ76mm |
| Label outer Diameter： | Max. φ600mm |

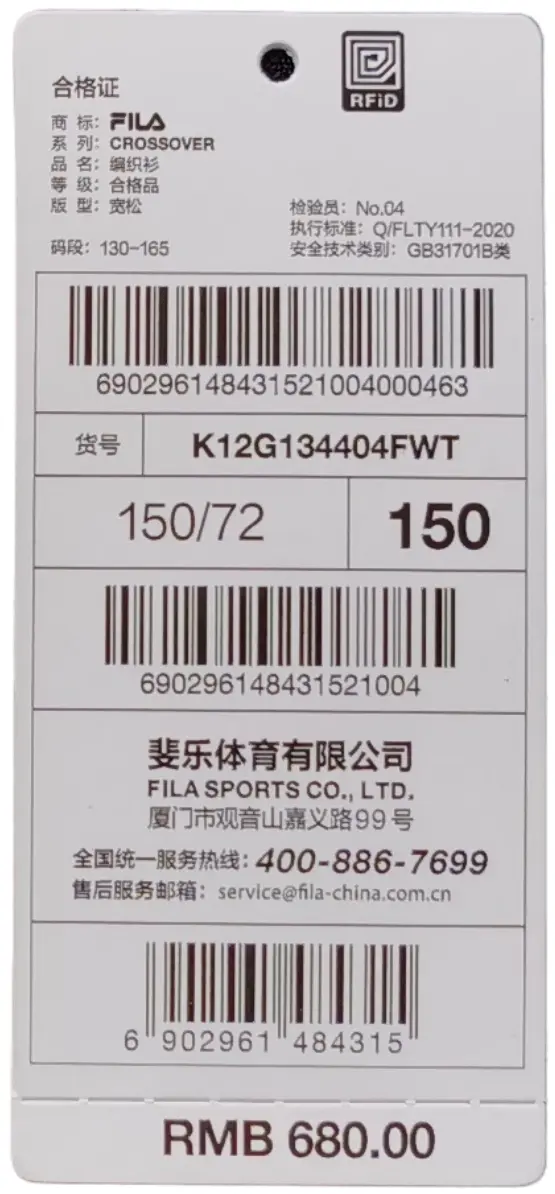

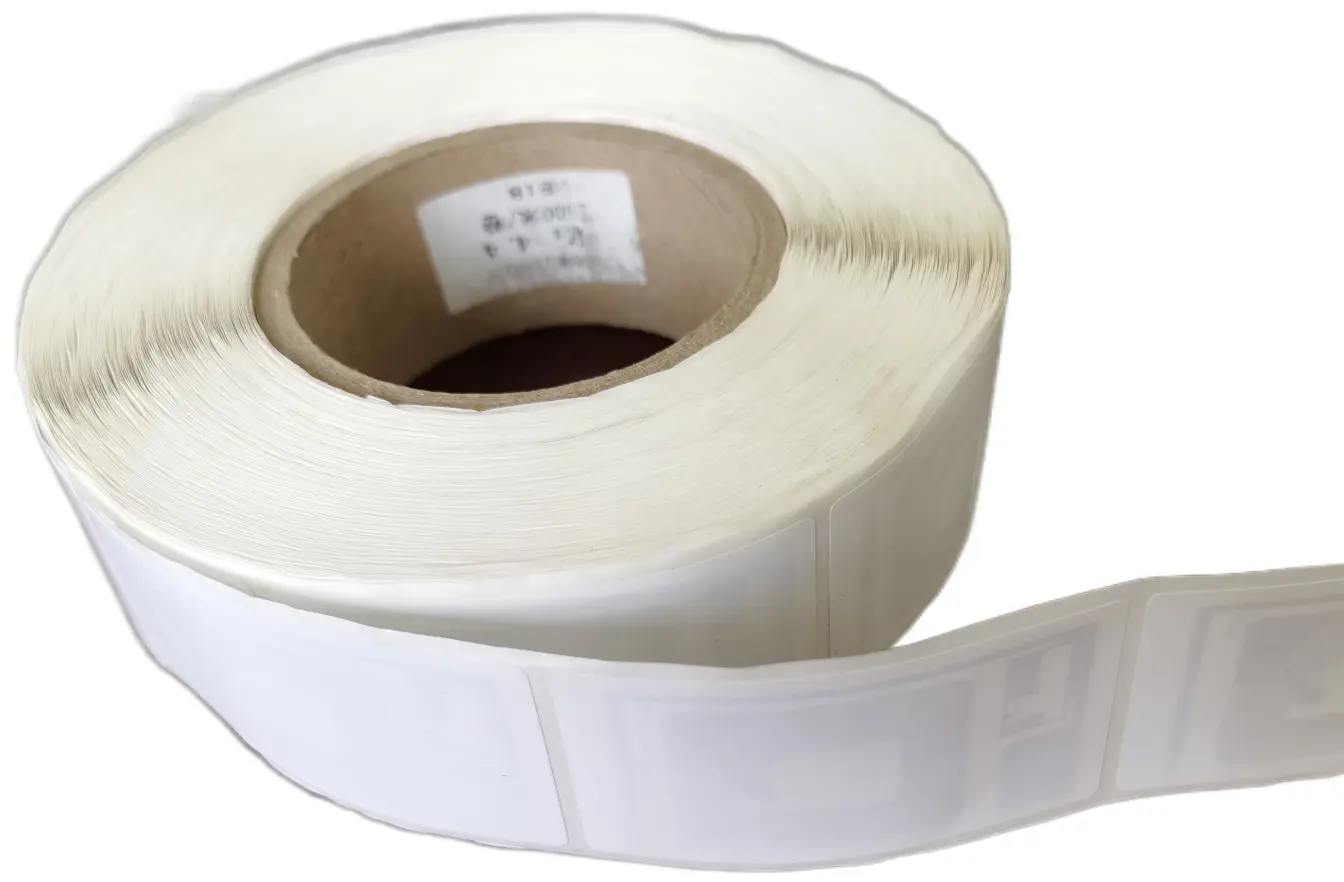

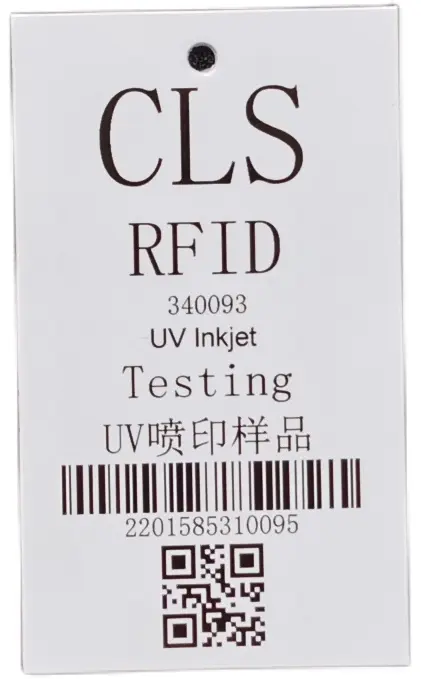

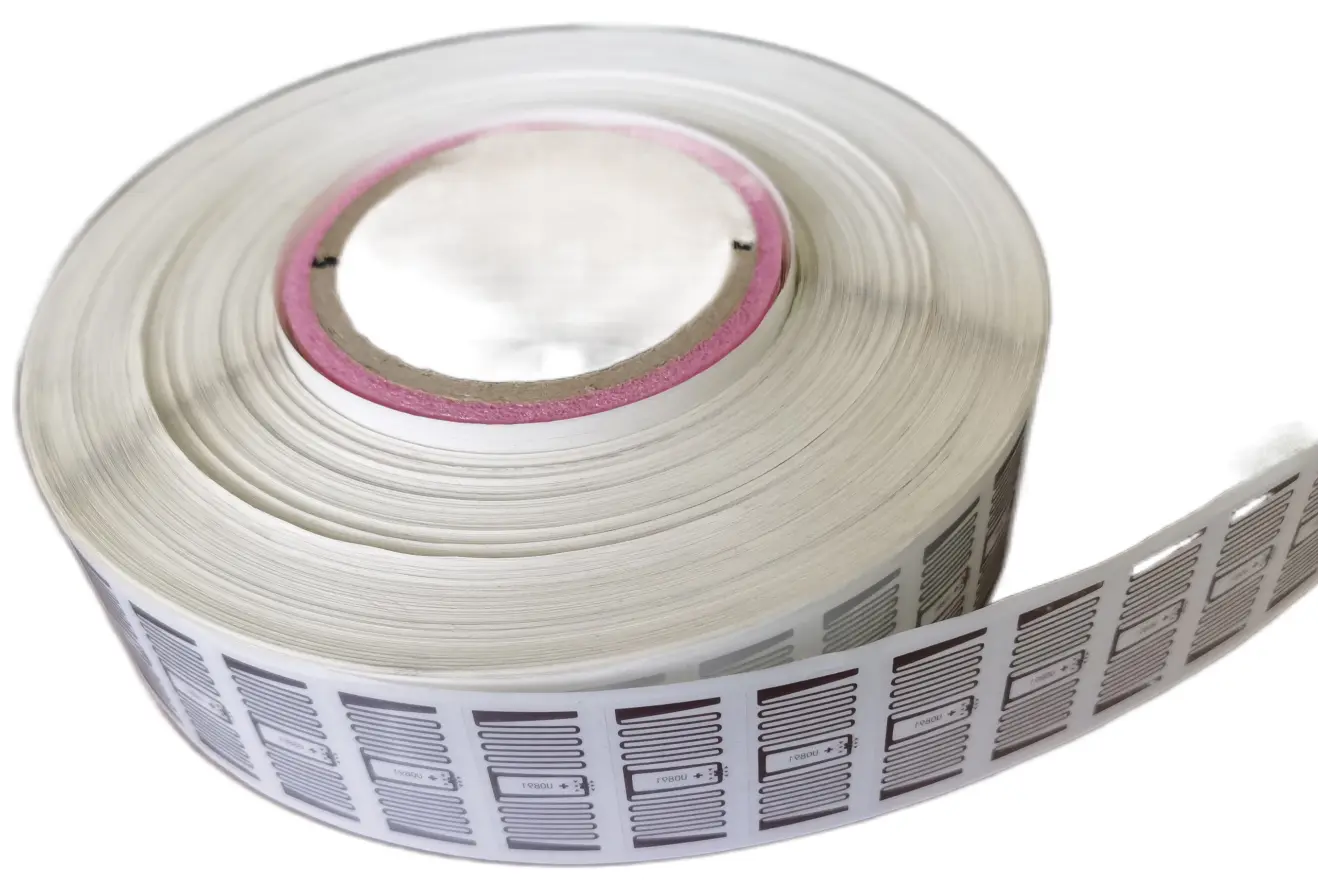

| Function： | produce RFID Label,Hand Tag,Satin and others by dry Inay or wet Inlay |
| Machine Size： | 2560*1430*1883（mm） |
| Power： | 3 phase 380V 50-60Hz 8KW |
| Weight： | 2600Kg |
The above parameters are for reference only. The exact details should be confirmed with the actual product.
Intelligent extraction type high-speed composite equipment

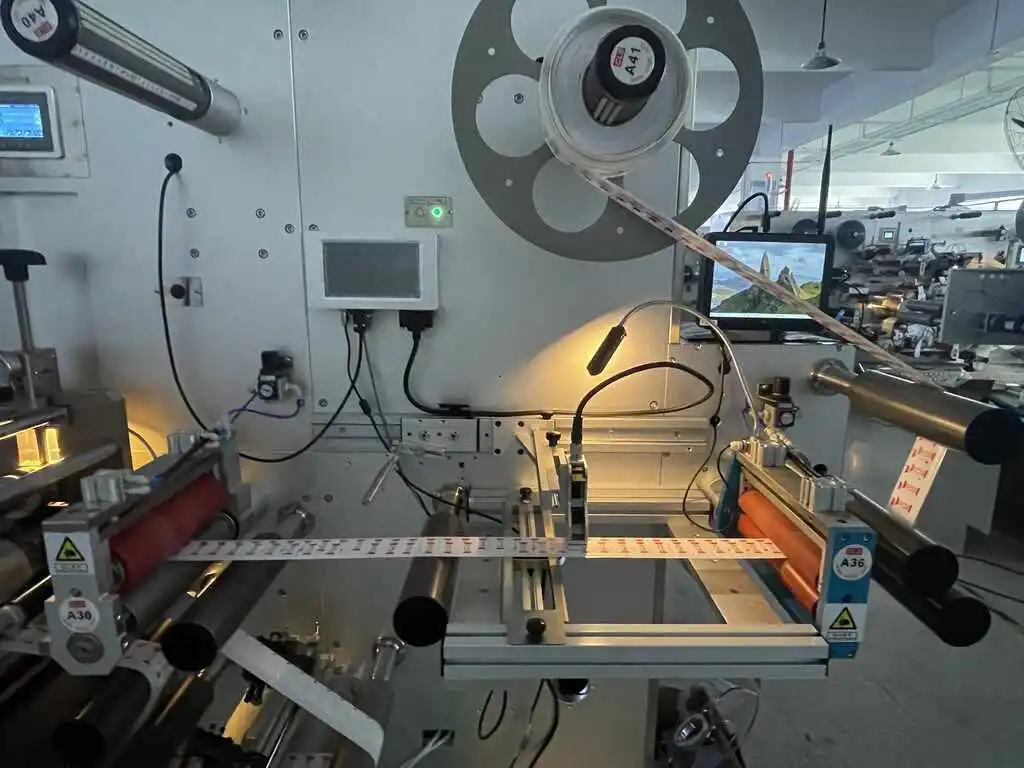

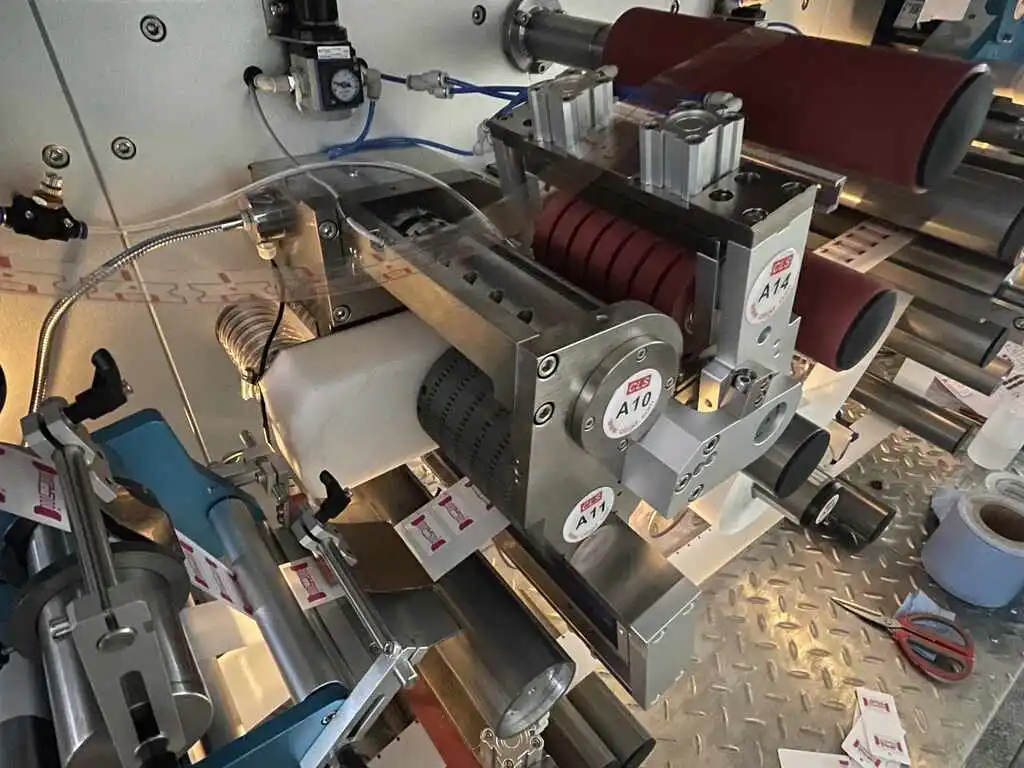

-CL-722 RFID electronic tag automatic laminating equipment, which integrates RFID chip lamination and RFID substrate tag lamination (including pre-cut tags and continuous tags lamination);
-The automatic compounding speed is 60 meters per minute.

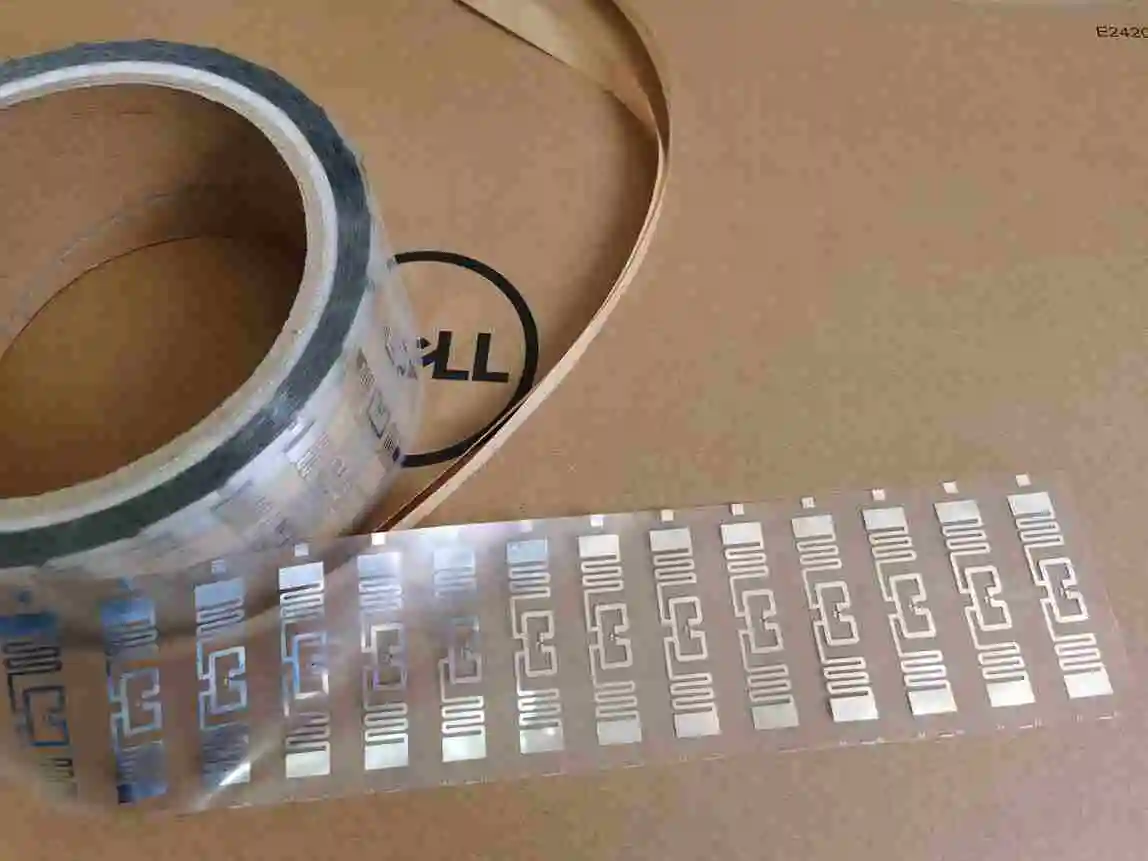

By cooperating with the company's dedicated die-cutting group for dry Inlay and the hot glue coating equipment, it is possible to achieve rapid production of RFID dry Inlay and wet Inlay.
-At the same time, you can also choose to equip our company's high-speed magnetic roller die-cutting mechanism, which can directly perform the die-cutting process for the labels and produce cards.
-You can also choose to equip our company's RFID tag inspection and marking cancellation function, enabling the automatic inspection process of the tags.
