| Encode Speed Max.： | 60000Pcs/H |
| Inkjet Printing Speed： | Max 60M/min |
| UV Inkjet Resolution： | 600 dpi |
| UV Inkjet wide： | 54mm or 108mm |
| UV Inkjet accuracy： | ±0.1m |
| Label width： | 20-180mm |
| Labet inner Diameter： | φ76mm |
| Label outer Diameter： | Max φ500mm |
| Function： | Roll Form Label UV inkjet,encode,detecting |
| Machine Size： | 244*950*1560（mm） |
| Power： | 220V 50-60Hz 6KW |
| Weight： | 800Kg |
The above parameters are for reference only. The actual situation should be based on the physical object.

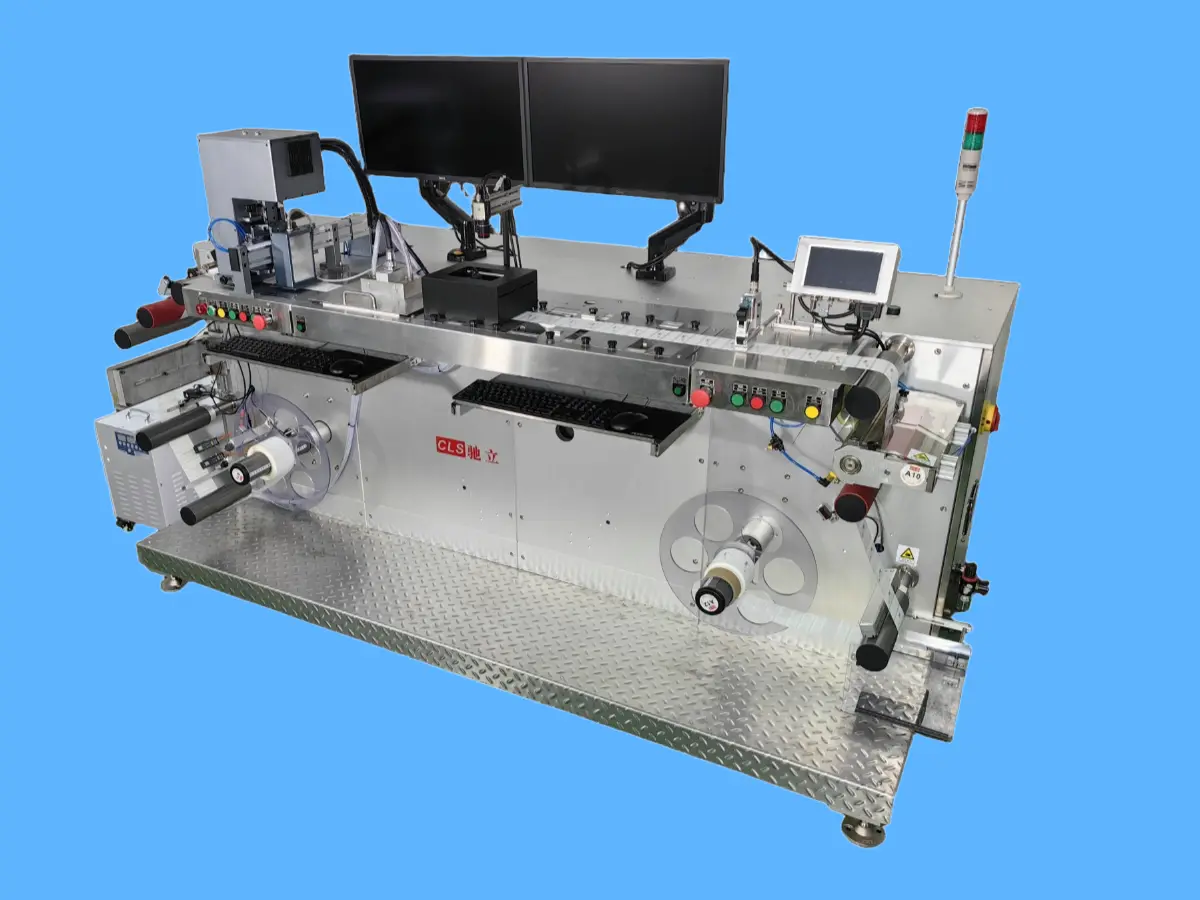

－This equipment is suitable for the automatic material separation, UV printing and code writing detection of single labels such as single hanging tags, cards, tickets, and fabric labels.
－The vacuum feeding mechanism improves the feeding efficiency.
－The equipment is equipped with an automatic alarm function for heavy materials during material separation.
－Equipped with a dual-position RFID coding and reading detection configuration to ensure the accuracy of the data;
－Equipped with barcode scanner function, it enables barcode printing and ensures consistency of EPC data.
－ Optional inkjet printing equipment can be equipped to apply labels or markings to the products.
－It has the functions of receiving materials, stacking them, counting, and separating and stacking them.
－The equipment is equipped with an automatic rejection and collection function for faulty labels and the corresponding mechanism.
－It can achieve high-speed UV printing, barcode scanning and code writing, as well as detection and verification all in one step.
－An optional fabric label star wheel materializing mechanism can be selected, enabling the coding and detection functions of fabric labels.
